| Model NO. | AC88 |
| Features |
| ◆ Easy to install and use , wireless |
| ◆ Clear and smooth video browsing; intelligent transmission giving full play to capabilities of the network |
| ◆ Online firmware upgrade, and synchronous updating of the functions and experience |
| ◆ Support two ways talk and echo cancellation , noise suppression |
| ◆ Remote real-time monitoring , Support Andorid and IOS smart device |
| ◆ 200W HD pixel with 1920x1080 resolution，clear picture quality |
| ◆ Double light source for night vision (night vision distance of 7 meters), provide infrared light/white LED supplement light, to achieve night vision color image effect. |
| ◆ With built-in rechargable battery , support long battery life, which normal working up to 6 months and standby for 15 months |
| ◆ 2.4G Wi-Fi supported (IEEE802.11b/g/n) |
| ◆ Cloud storage, Micro SD card (up to 128GB) and mobile phone video recording supported |
| ◆ QR code intelligent connection and network allocation supported |
| ◆ Support Human Detection 、Car recognition 、Intelligent fence 、Pet Recognition 、Package Recognition and Intelligent Push |
| ◆ IP65 Easy installation: support 1 / 4 universal screw bracket and magnetic suction bracket |
| Specifications |
| Main Processor |
| SOC | ARM |
| Image Sensor |
| Cmos Sensor | 1/3" Color CMOS Sensor |
| Lens | M12,f: 3.3mm,F2.0, 200w |
| Visual angle | H(Horizontal)°; V(Vertical)55°; D(Diagonal)110° |
| Minimum Illumination | 0.01Lux |
| Audio |
| Input/Output | built-in Microphone and speaker |
| Audio Compressing | AAC |
| Video |
| Video Compressing | H.264/H.265 |
| Lighting Frequency | 50Hz, 60Hz |
| Frame Rate | 15fps |
| Maximum Resolution | 1920*1080P |
| Light Source for Night Vision | Double light source with medium power infrared LED (850nM wavelength) and white LED , irradiation distance :7 meters |
| Network |
| Wireless Network | 2.4G Wi-Fi(IEEE802.11b/g/n), with External antenna |
| Protocols Supported | TCP/IP、UDP/IP、DHCP、RTMP、MUTP |
| IP Address Supported | Dynamic IP address supported |
| AI |
| Intelligent Features | Support Human Detection 、Car recognition 、Intelligent fence 、Pet Recognition 、Package Recognition and Intelligent Push |
| Alarm |
| Alarm Notification | Alarm push by mobile APP，white LED flashing and alarm sound warning |
| Wake up |
| Wake up Method | PIR body induction wake-up, and remote wake-up |
| Recording |
| Recording Method | Alarm triggered recording, and manual recording |
| Video Storage | Cloud storage, local Micro SD card, and mobile phone memory |
| Indicator |
| LED Indicator | RGB tri-color lamp indicating the status of power/network signal/functionality |
| Battery |
| Capacity | 8800mAH |
| Removability | Unremovable |
| Battery Life | 8 months（Record 20 10S videos per day) |
| Standby | 15 months |
| Charge Voltage | DV 5V+-5%/1.5A |
| Charge time | 17hours |
| Protect | IP65；over-current/over-discharge/over-charge/short circuit/charging protection at high & low temperatures |
| Power Consumption |
| Standby | 1.68mW(4V 0.42mA） |
| Day | 1W(3.8V 264mA） |
| Night | 2.23W(3.8V 588mA） |
| Interface |
| Power | Micro USB |
| SD Card | 1 Micro SD card (up to 128GB supported) |
| Key | one reset key and one power key |
| Installation |

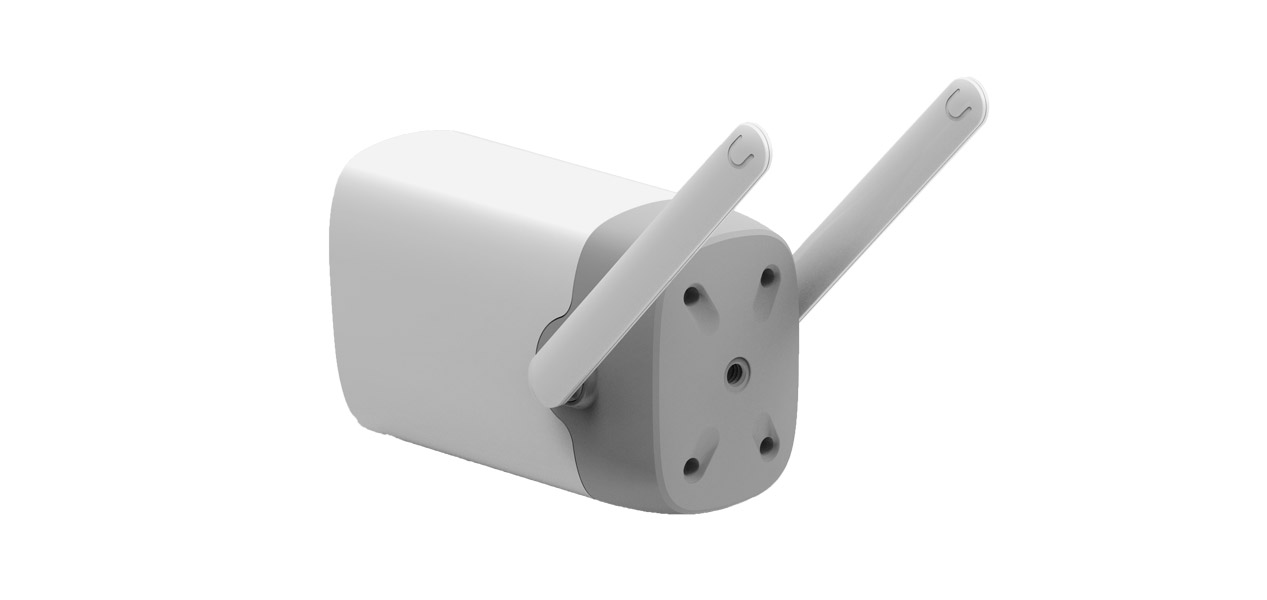

| method | Magnet and 1/4 universal screw holes |
| Environment |
| Dustproof and waterproof | IP65 |
| Operating Environment | -10° ~ 45°C /10% ~ 80% (no condensation) |
| Storage Environment | -20°C ~ 60° /0% ~ 90% (no condensation) |
| Prodoct dimension |
| dimension(LxWxH) | 81.3*119.2*80.6(mm) |
| The bare weight | 500g |
| finished weight | 600g |
| Material | ABS+PC |
| Color | White |
| Certification |
| Certification | CE,FCC,RoHS,WEEE,MSDS,UN38.3 |
