IPTA30FK500W
  • 规格

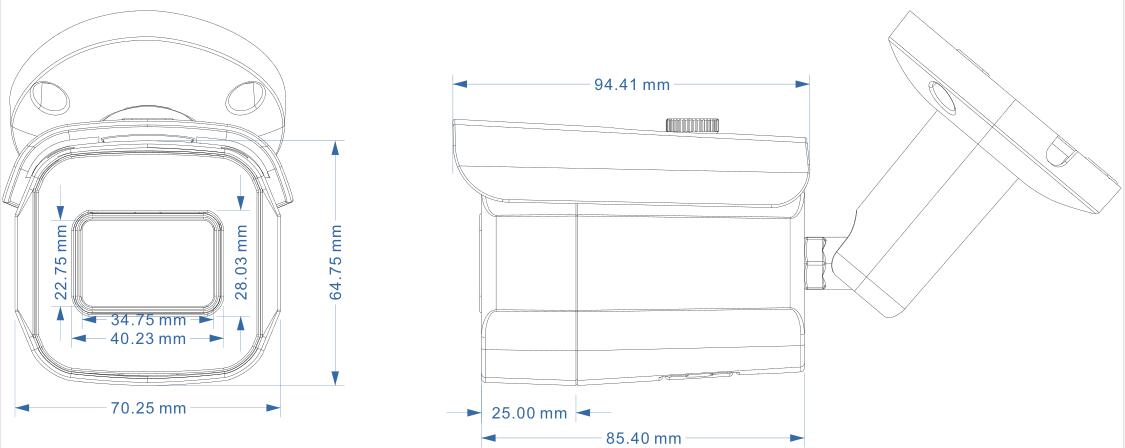

  • 尺寸图
  • 下载
  • 反馈问题

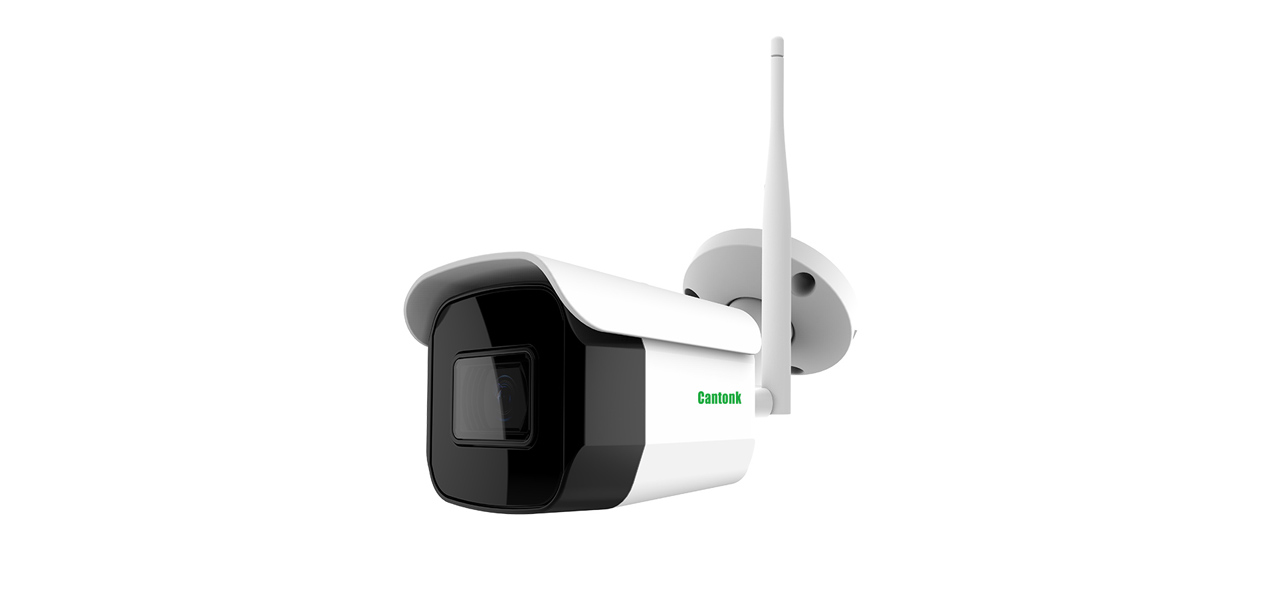

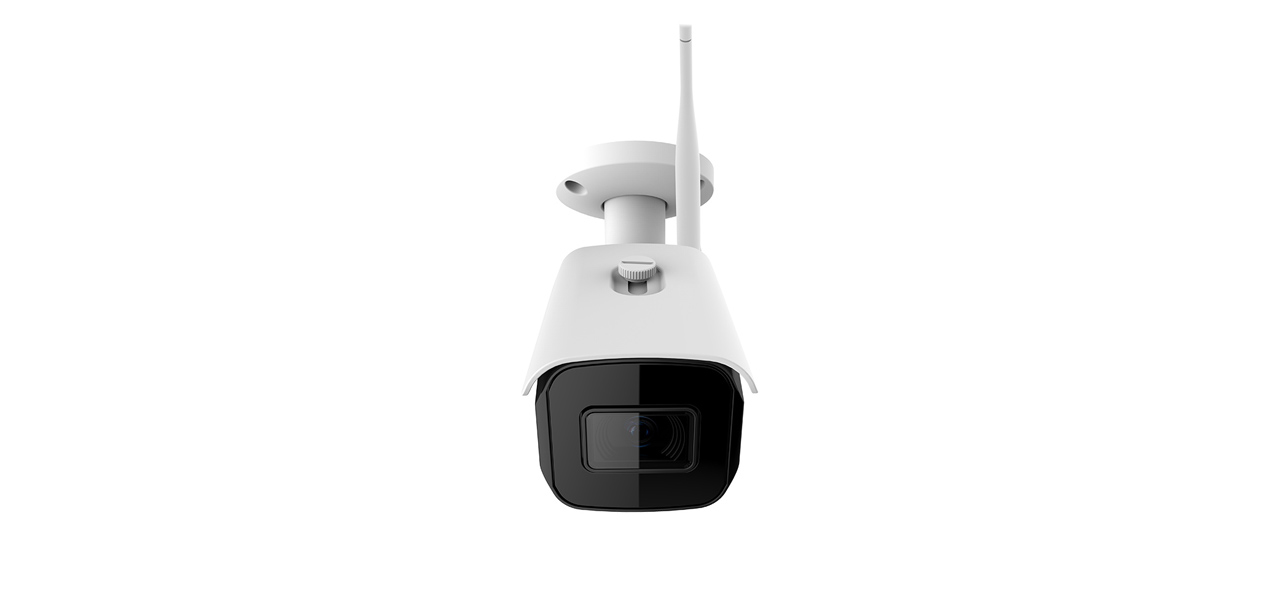

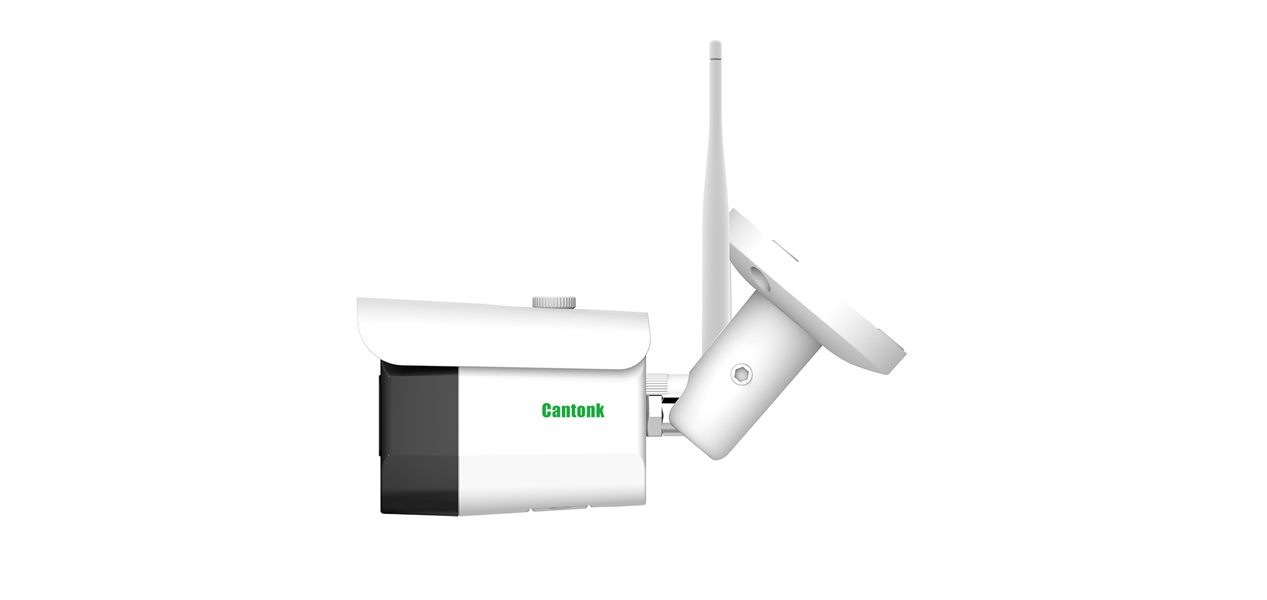

Model NO.IPTA30FK500W
Camera
Image Sensor1/2.5" High-resolution CMOS Sensor
Resolution5MP
Effective Pixels2608(H)*1952(V)
Compression H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
TV SystemPAL/NTSC
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
Minimun Illumination0.01Lux
S/N Ratio≥52dB
Scanning SystemProgressive
Video OutputNetwork
Reset ButtonNO
LENS Type
Focus LengthBoard Lens 3.6mm/F2.0
Focus ControlFixed
Lens TypeFixed
Pixels5MP
Night Vision
Infrared LED 42µ x 2PCS
Infrared Distance25M
IR StatusAuto
IR Power OnAuto
Network
EthernetRJ-45 (10/100Base-T)
ProtocolTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIFSupport ONVIF 2.4
P2PYES, Support QR Code
POE/
Video Delay 0.3S (Within the Lan)
Main Stream 12592*1944@20fp
2560*1920@20fp
Main Stream 22560*1440@30fp
Main Stream 31920*1080@30fps
Sub Stream 1720*480@20fps
720*480@30fps
Sub Stream 2/
Sub Stream 3/
Tri Stream/
IE Brower IE9-11, Google Chrome(Under Ver 45), Firefox(Under Ver 53), Mac Safari
Smart PhoneiPhone, iPad, Android, Android Pad
Wireless
Antena3dbi
Hotspot/
Wi-FiWi-Fi(IEEE802.11b/g/n),2.4Ghz
WIFI RangeNo obstacles 300m Max.
Camera Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)
Corridor PatternSupport
ROI/
Defog  ModeSupport
BLCSupport
HDR/
WDR/
Motion DetectionSupport
Privacy  Masking3 Rectangular Zone
Recording ModeNVR/VMS/Web/SD Card
LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French,
Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
Interface
AudioOptional Audio in by Line(RCA interface)
Alarm/
SD Card Slotsupport  256G Micro SD With External SD Card Slot
RS485/
General
HousingMetal, IP67
Anti-cut BracketAnti-Cut 3-Axis
IR Cut FilterYES
Operation Temperature-20℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%, 700mA
Dimension170(W)x75(H)x77(D)mm
Weight770g
