| Model NO. | IPSHQ30FK500W |
| Camera | |
| Image Sensor | 1/2.5" High-resolution CMOS Sensor |
| Resolution | 5MP |
| Effective Pixels | 2608(H)*1952(V) |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| Minimun Illumination | 0.01Lux |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | NO |
| LENS Type | |
| Focus Length | 2.8mm |
| Focus Control | manual |
| Lens Type | manual |
| Pixels | 5MP |
| Night Vision | |
| Infrared LED | 14µx 24PCS |
| Infrared Distance | 30M |
| IR Status | Auto |
| IR Power On | Auto |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
| ONVIF | Support ONVIF 2.4(Profile S) |
| P2P | YES, Support QR Code |
| POE | / |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 1 | 2592*1944@20fp 2560*1920@20fp |
| Main Stream 2 | 2560*1440@30fp |
| Main Stream 3 | 1920*1080@30fps |
| Sub Stream 1 | 720*480@20fps 720*480@30fps |
| Sub Stream 2 | / |
| Sub Stream 3 | / |
| Tri Stream | / |
| IE Brower | IE9-11, Google Chrome(Under Ver 45), Firefox(Under Ver 53), Mac Safari(Under ver 11) |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| Wireless | |
| Antena | 3dbi |
| Hotspot | / |
| Wi-Fi | Wi-Fi(IEEE802.11b/g/n),2.4Ghz |
| WIFI Range | No obstacles 300m Max. |
| Camera Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) |
| Corridor Pattern | Support |
| ROI | / |
| Defog Mode | Support |
| BLC | Support |
| HDR | / |
| WDR | / |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/VMS/Web/SD Card |
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese |
| Interface | |
| Audio | Optional Audio in by Line(RCA interface) |
| Alarm | / |
| SD Card Slot | support 256G Micro SD With External SD Card Slot |
| RS485 | / |
| General | |
| Housing | Metal, IP67 |
| Anti-cut Bracket | NO |
| IR Cut Filter | YES |
| Operation Temperature | -20℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 950mA |

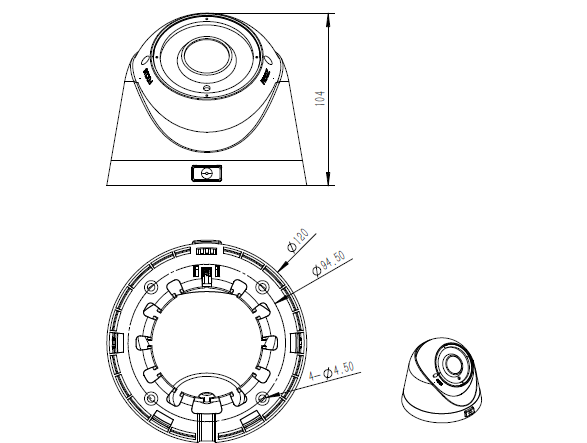

| Dimension | ￠120 x 104(H) mm |
| Weight | 600g |
