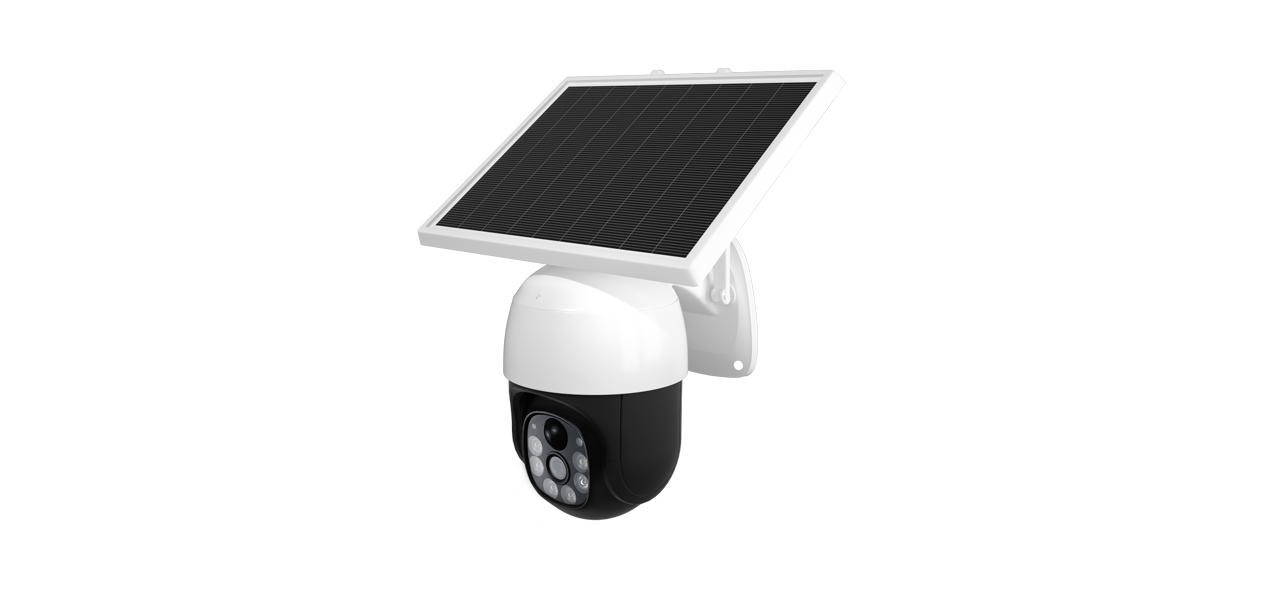

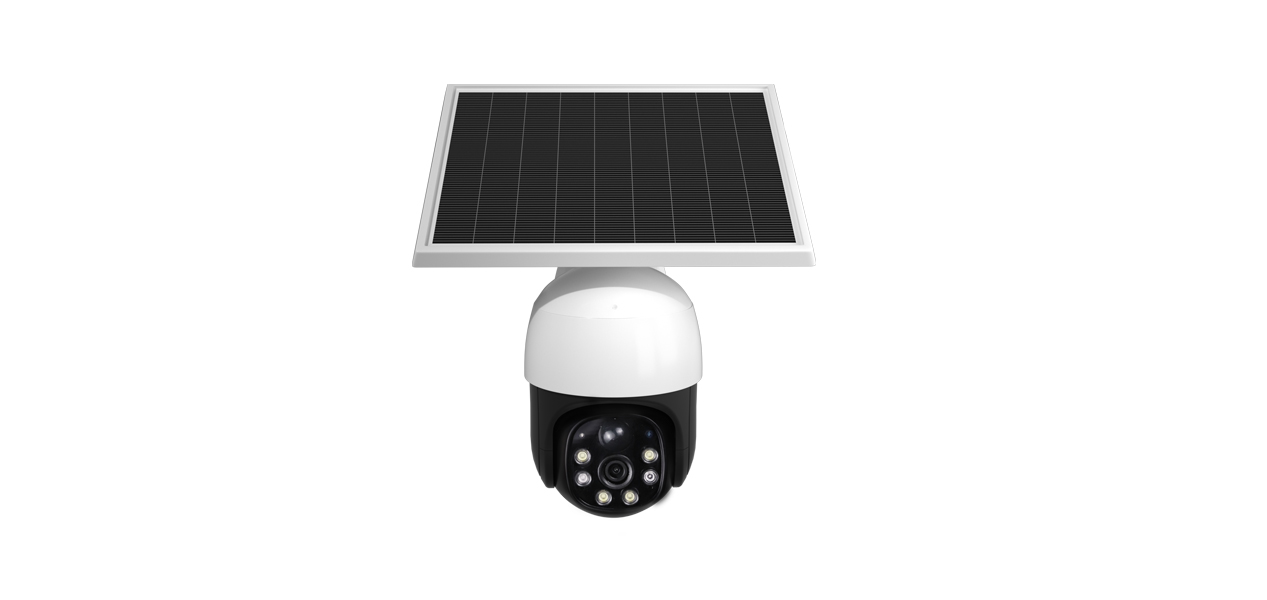

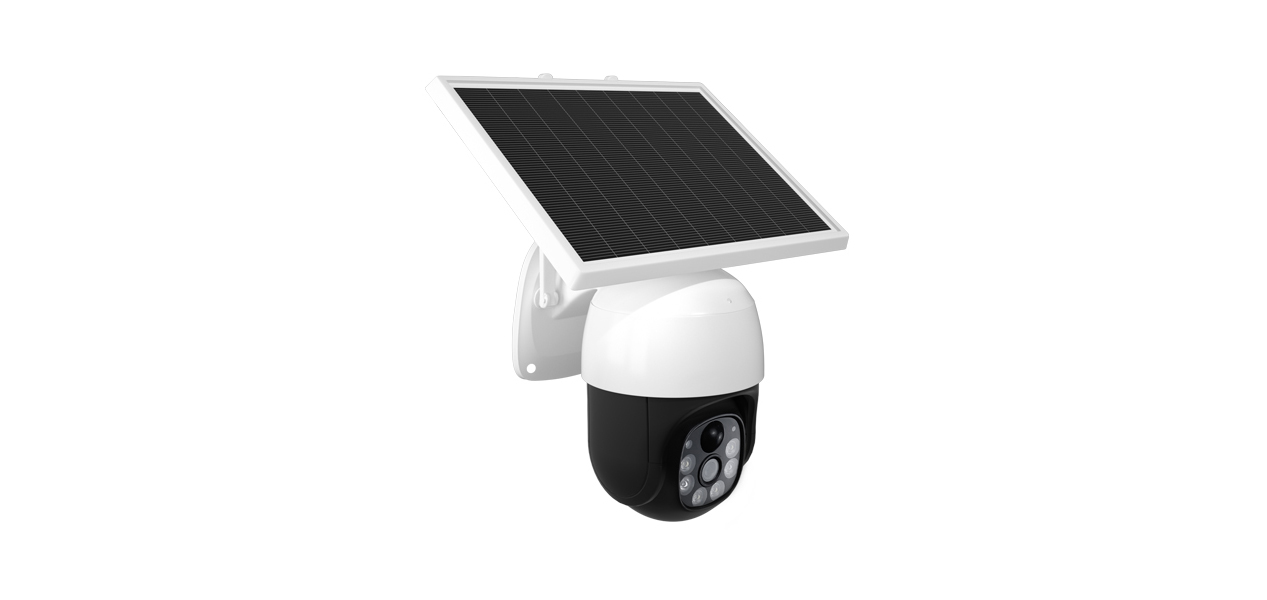

| Model NO. | AC90 |
| Package | |
| Camera | 1 PCS |
| Solar Panel | 1 PCS 7.5W |
| Battery | 18650 x 4 PCS |
| Camera | |
| Image Sensor | 1/2.9" COMS sensor |
| Resolution | 2MP 1080P |
| Effective Pixels | 1920(H)*1080(V) |
| Compression | H.265 |
| Electronic Shutter Time | Auto（1 / 12s~1 / 100000s） |
| S/N Ratio | 40dB |
| Scanning System | Progressive |
| Video Output | 4G network |
| Reset Button | Yes |
| PTZ | |
| Horizontal Rotation Range | 0~270° |
| Tilt Rotation Range | 0~90° |
| LENS Type | |
| Focus Length | 3.6mm F2.3 |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 2M Pixels |
| Night Vision | |
| Infrared LED | 14µ x 2pcs Infrared Array + 4pcs LED White Light |
| Infrared Distance | 10-15m (Depending On Environment) |
| IR Status | CDS Auto Control |
| IR Power On | Auto Control |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP、UDP、HTTP、DDNS、DHCP、FTP、NTP |
| ONVIF | / |
| P2P | Support |
| 4G | LTE4G-Nano SIM 、LTE-FDD:B1/3/5/8 、LTE-TDD:B38/39/40/41 |
| WIFI | / |
| POE | / |
| Main Stream 1 | 1920*1080@15fps |
| Main Stream 2 | / |
| Main Stream 3 | / |
| Sub Stream 1 | 640*360@15fps |
| Sub Stream 2 | / |
| Sub Stream 3 | / |
| Tri Stream | / |
| IE Brower | / |
| Smart Phone | support |
| Camera Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Minimun Illumination | 0.01 Lux |
| Image Config | YES |
| Corridor Pattern | / |
| ROI | / |
| Defog Mode | / |
| BLC | / |
| HDR | / |
| 3DNR | Support |
| DWDR | Support |
| Motion Detection | Support |
| Privacy Masking | / |
| Recording Mode | SDcard |
| Language | Chinese, English |
| Interface | |
| Audio | 2-Way Audio |
| Alarm | Motion Detection 、PIR human body infrared detection、 Humanoid AI detection, personnel intrusion detection |
| SD Card Slot | Support Max 128G |
| General | |
| Housing | plastic, IP65 |
| Bracket | Support |
| IR Cut Filter | YES |
| Operation Temperature | 0℃ ~ +40℃ RH95% Max |
| Storage Temperature | -10℃ ~ +50℃ RH95% Max |
| Power | DC 5V/2A or 18650 battery powered |
| Size | 56*52*50cm |
