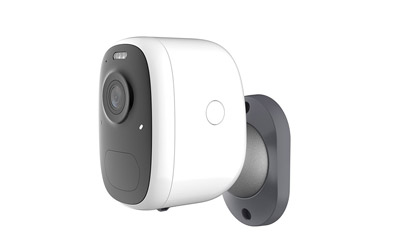

Model NO.AC84
Camera
Sensor1/3" CMOS
Focal Length2.97 mm
ApertureF1.6
Optical Field of View123.6° diagonal, 105° horizontal, 58.3° vertical
Minimum Illumination0.01 lux
Audio
InputBuilt-in microphone
OutputBuilt-in speaker
Two-way AudioFull duplex
Audio CompressingAAC
Video
Video CompressingH.264, H.265
Lighting Frequency50 Hz, 60 Hz
Frame Rate15 fps
Maximum Resolution2560 x 1440
Light Source For Night VisionWhite light or infrared LED switchable
Network
Wireless Standard2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)
Protocols SupportedTCP/IP, UDP/IP, DHCP, RTMP, MUTP
IP Address TypeDynamic IP address
Recording
Recording MethodAlarm triggered recording, and manual recording
Video StorageCloud storage, local Micro SD card (up to 128 GB), and mobile phone memory
Function
AI FunctionHuman detection, activity zone, vechicle detection, pet snapshot and package detection
Wake-up MethodPIR body induction wake-up and remote wake-up
Alarm NotificationAlarm push by mobile app, white LED flashing and alarm sound warning
IndicatorRGB tri-color LED
Battery
Capacity9000 mAh
RemovabilityUnremovable
Working Time8 months (recording 20 pieces of 10-second video per day)
Standby Time2 years
Charging Voltage5 V ±5%
Charing Current1.5 A
Charging Time15 hours
ProtectionOver-charge, over-discharge, over-current, short circuit and charging protection at high and low temperature
Power Consumption
Standby1.93 mW
Daytime Working1.11 W
Nighttime Working2.02 W
Interface
PowerMicro USB
StorageMicro SD card
KeyPower key and reset key
Installation
Installation MethodWall mount, desktop
Bracket Type1/4'' universal screw hole
Environment
Dustproof and WaterproofIP65
Operating Temperature-10 ℃ ~ 45 ℃
Storage Temperature-20 ℃ ~ 60 ℃
Prodoct dimension
Dimension135 mm × 75.2 mm × 82.4 mm (without bracket)
MaterialABS + PC
ColorWhite
Certification
CertificationCE, FCC, RoHS, WEEE, MSDS, UN38.3, UL62368
