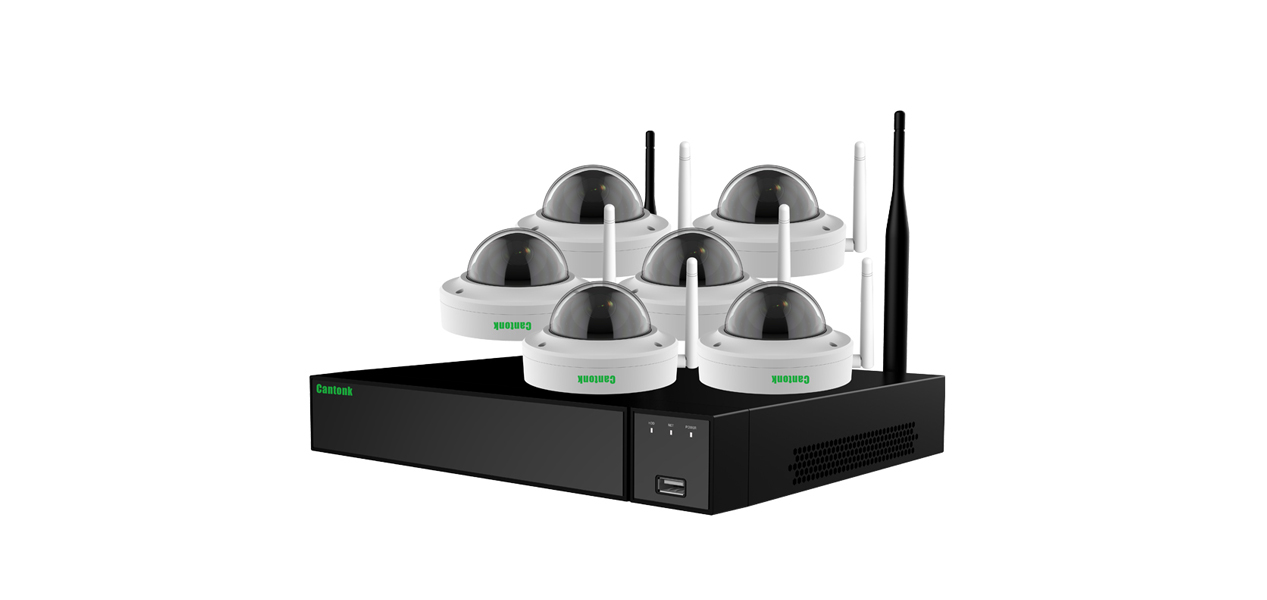

WIFICED8366KE200
  • 规格
  • 尺寸图
  • 下载
  • 反馈问题
Model NO.WIFICED8366KE200
Package
NVR1x  NVRCE8366KTW
Camera6 x IPCDMKE200W
WIFI RangeNo Obstacles 350m Max
Cable1 x 1m Net Cable
Mouse1xUSB 2.0 Mouse
Adaptor1xDC 12V 2A for WIFI NVR, 6xDC 12V 0.5A for WIFI IP Camera
Weight9.9kg/SET
Camera ModelIPCDMKE200W
Camera
Image Sensor1/2.9"  Full HD CMOS Sensor
Resolution2MP 1080P
Effective Pixels1920(H)*1080(V)
Compression H.264/H.264+/H.265/H.265+
TV SystemPAL(default)
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec
S/N Ratio≥52dB
Scanning SystemProgressive
Video OutputWireless network
Reset ButtonYes
LENS Type
Focus Length3.6mm
Focus ControlFixed
Lens TypeFixed
Pixels2M Pixels
Night Vision
Infrared LED14µ x 12PCS
Infrared Distance20M
IR StatusAuto Control
IR Power OnAuto Control
Network
Ethernet/
ProtocolTCP/IP,ICMP,RTP,RTSP,RTCP
ONVIF/
P2P/
POE/
Main Stream 11920*1080@1-15fps(default resolution:1920*1080/frame rate:15fps/bit rate:1Mbps)
Main Stream 2/
Main Stream 3/
Sub Stream 1720*480@1-15fps(default frame rate:15fps/bit rate:0.5Mbps)
Sub Stream 2/
Sub Stream 3/
Tri Stream/
IE Brower /
Smart Phone/
Wireless
Antena3dbi
HotspotNO
Wi-FiWi-Fi(IEEE802.11b/g/n)
WIFI RangeNo obstacles 300m Max.
Camera Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror,  White Balance, FLK(Flicker Control)
Corridor Pattern/
ROI/
Defog  Mode/
BLC/
HDR/
WDR/
Motion DetectionSupport
Privacy  Masking3 Rectangular Zone
Recording ModeNVR
Language/
Interface
AudioBuilt in Audio In
Alarm/
SD Card Slot/
RS485/
General
HousingMetal , IP67
Anti-cut BracketOptional Wall Bracket
IR Cut FilterYES
Operation Temperature-20℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%, 500mA
Dimension94(W) x 94(H) x 72(D)mm
Weight400g
ModelNVRCE8366KTW
System
Main ProcessorARM Cortex A7 Quad-core Processor
Operating SystemEmbedded LINUX
Video
Input9CH (2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output1 VGA, 1 HD
Audio
Input/
Output1 Port RCA(Linear, 1kΩ)
Audio Bit Rate64kbps
Audio Compression standardG711u, G711a, G726
Alarm
Sensor InputNO
OutputNO
Motion Detection9 Channel, MD Zones: 396 (22 × 18)
Trigger EventsRecording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output
AI Function
Face Comparison1 channel video stream face Comparison(1 face databases with 10 face images)
Display
HD1Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HD2/
VGAResolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP
Digital ZoomYES
OSDCamera Title, Time, Recording, Motion Detection, Alarm
Recording
Video CompressionH.264/H.265/H.264+/H.265+
Resolution5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),
960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record RatePAL :5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp
NTSC: 5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp
Record ModeManual\Timer\Motion Detection\Smart Alarm
Playback & Backup
Local Sync Playback1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
Decode Capability4CH 1080P@20fps
Remote Sync PlaybackYES
Search ModeALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm
Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom
Backup ModeNetwork/USB(With usb hub)
Network
Interface1 RJ45 10M/100M Adaptive Ethernet Interface
Incoming Bandwidth60MB
Network FunctionsTCP/CP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
Onvif VersionSupport Onvif 2.4
Web BrowserIE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10
Cloud Support(P2P)Yes
Smart PhoneiPhone, iPad, Android, Android Pad
POE/
WIFISupport, WIFI Range: No Obstacles 300m Max.
Storage
Interface Type1 SATA Hard Disk Interface (2.5"/3.5" SATA)
CapacityUp to 8TB capacity
eSATA/
General
LanguageTraditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek,  Vietnamese
USB Interface1 USB 2.0 Interfaces
RS485/
Power SupplyDC12V/2A
Working Environment-10~55℃/10~90%
Dimension(W×D×H)260*215*43(mm)
Weight2.0KG (without HDD)
