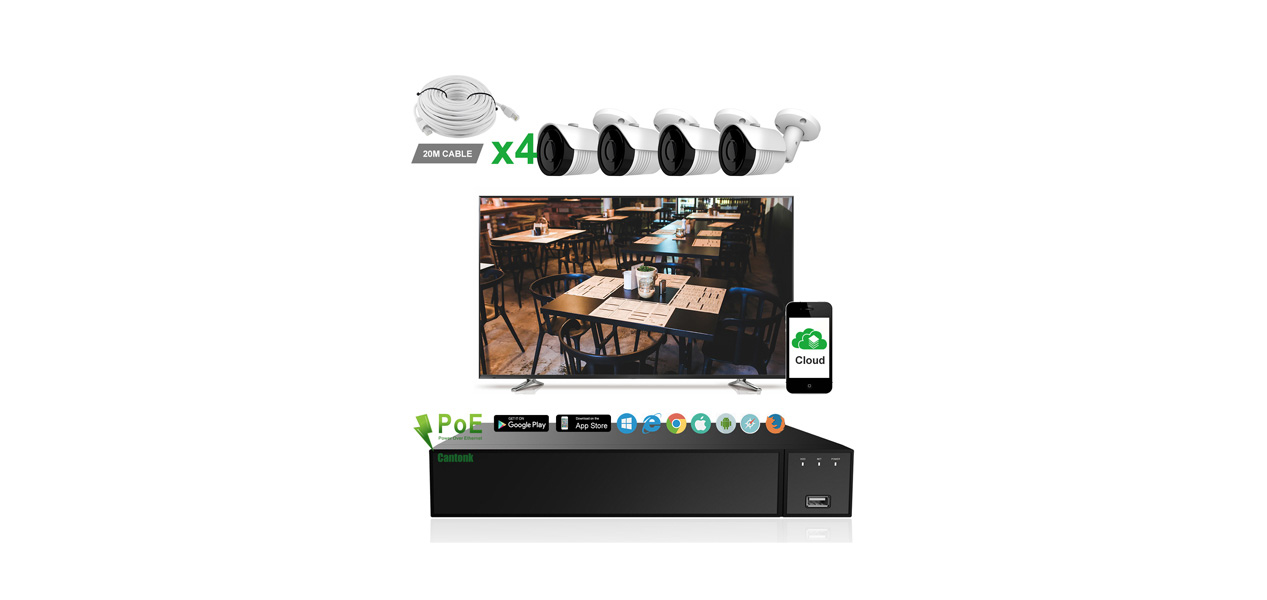

| Model NO. | NVRC421PKM4FE500R | |
| Package | ||
| NVR | 1x NVRC421PK | |
| Camera | 4 x IPR25FE500 | |
| Cable | 4x 20m CAT5e Cable | |
| Mouse | 1xUSB 2.0 Mouse | |
| Hard Disk | No | |
| Adaptor | DC52V/1.25A | |
| Weight | 7.8kg/SET | |
| Camera Model | IPR25FE500 | |
| Image Sensor | 1/2.5" High-resolution CMOS Sensor | |
| Resolution | 4MP | |
| Effective Pixels | 2608(H)*1952(V) | |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG | |
| TV System | PAL/NTSC | |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec | |
| Minimun Illumination | 0.01Lux | |
| S/N Ratio | ≥52dB | |
| Scanning System | Progressive | |
| Video Output | Network | |
| Reset Button | Optional | |
| Lens | ||
| Focus Length | 3.6mm | |
| Focus Control | Fixed | |
| Lens Type | Fixed | |
| Pixels | 5MP | |
| Night Vision | ||
| Infrared LED | 14µ x 20PCS | |
| Infrared Distance | 25M | |
| IR Status | Auto Control | |
| IR Power On | Auto Control | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wireless | / | |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,UDP | |
| ONVIF | Support ONVIF 2.4(Profile S/T/G) | |
| P2P | YES | |
| POE | Yes, Support IEEE 802.3af | |
| Video Delay | 0.3S (Within the Lan) | |
| Main Stream 1 | 2592*1944@20fp 2560*1920@20fp | |
| Main Stream 2 | 2560*1440@30fp | |
| Main Stream 3 | 1920*1080@30fps 1280*720@30fps | |
| Sub Stream 1 | 720*480@20fps 720*480@30fps | |
| Sub Stream 2 | / | |
| Sub Stream 3 | / | |
| Tri Stream | / | |
| IE Brower | IE8-11, Google Chrome, Firefox , Mac Safari | |
| Smart Phone | iPhone, iPad, Android, Android Pad | |
| Camera Features | ||
| Day/Night | Color/ B&W (IR-CUT ) | |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, White Balance, FLK(Flicker Control) | |
| Starlight | / | |
| Corridor Pattern | Support | |
| Defog Mode | / | |
| ROI | / | |
| BLC | YES | |
| HDR | / | |
| WDR | DWDR: 50dB | |
| Motion Detection | Support | |
| Privacy Masking | 3 Rectangular Zone | |
| Recording Mode | NVR | |
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese | |
| Interface | ||
| Audio | Optional | |
| Alarm | / | |
| SD Card Slot | / | |
| RS485 | / | |
| General | ||
| Housing | Metal , IP67 | |
| Anti-cut Bracket | NO | |
| IR Cut Filter | YES | |
| Operation Temperature | -20℃ ~ +60℃ RH95% Max | |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
| Power Source | DC12V±10%, 950mA | |
| Dimension | 157(W) x 70(H) x 66(D)mm | |
| Weight | 650g | |
| Model | NVRC421PK | |
| System | ||
| Main Processor | ARM Cortex A7 Processor | |
| Operating System | Embedded LINUX | |
| Video | ||
| Input | 9CH (3840×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) | |
| Output | 1 VGA, 1 HD | |
| Audio | ||
| Input | 1 Port RCA | |
| Output | 1 Port RCA(Linear, 1kΩ) | |
| Audio Bit Rate | 64kbps | |
| Audio Compression standard | G711u, G711a, ADPCM_DVI4 | |
| Alarm | ||
| Sensor Input | 4 | |
| Output | 1 | |
| Motion Detection | 9 Channel, MD Zones: 396 (22 × 18) | |
| Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output | |
| Display | ||
| HD Output1 | Resolution:4K (3840 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| HD Output2 | / | |
| VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| Display Split | 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k | |
| Digital Zoom | YES | |
| OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm | |
| Recording | ||
| Video Compression | H265/H264/H265+/H264+ | |
| Resolution | 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536), 1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480) | |
| Record Rate | PAL :4K@8x25fps,5MP@9×25fp,4MP@9x25fp,3MP@9×25fp, 1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp NTSC: 4K@8x30fps,5MP@9×30fp,4MP@9×30fp,3MP@9×30fp, 1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp | |
| Record Mode | Manual\Timer\Motion Detection\ Alarm\Motion and Alarm\Smart Alarm | |
| Playback & Backup | ||
| Local Sync Playback | 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps | |
| Decode Capability | 4CH 1080P(1920x1080)@30fps | |
| Remote Sync Playback | YES | |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search | |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip | |
| Backup Mode | USB Device/Network | |
| Network | ||
| Interface | 5 x RJ45 (10M/100M Adaptive Ethernet Interface) | |
| Incoming Bandwidth | 80MB | |
| Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE | |
| Onvif Version | Support Onvif 2.8 | |
| Web Browser | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) | |
| CMS Software | Support Windows 7/ Windows 8/Windows 10/MAC OS | |
| Cloud Support(P2P) | Yes | |
| Smart Phone | iPhone, iPad, Android, Android Pad | |
| POE | 4 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), 45/78 line order, Total Power Output≧50W, Support Plug and Play, Support network cable extended mode Max. 200M | |
| WIFI | / | |
| Storage | ||
| Interface Type | 1 SATA Hard Disk Interface (2.5"/3.5" SATA) | |
| Capacity | Up to 8TB capacity | |
| eSATA | / | |
| General | ||
| Language | Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese,Janpanese | |
| USB Interface | 2 USB 2.0 Interfaces | |
| RS485 | / | |
| Power Supply | DC 52V/1250mA ≤10W (Without Hard Disk and POE) | |
| Working Environment | -10~55℃/10~90% | |
| Dimension(W×D×H) | 260*215*43(mm) | |
| Weight | 2.0KG (without HDD) | |
